NVIDIA Quantum-3 4U C2P XDR IB Switch - Q3400-RA 144 XDR Ports 72 OSFP Cages - 8 Power Supplies
|
|
|
SKU: 920-9B36F-00RX-8S0
NVIDIA Quantum-3 based XDR InfiniBand Switch, , Q3400-RA, 4U, 144 XDR Ports over 72 OSFP Cages, 8 Power Supplies (Power Cords Not Included), Standard Depth, Managed, C2P Airflow, Rail Kit More details... |
|
|
|
NVIDIA Quantum-3 4U C2P XDR IB Switch - Q3400-RA 144 XDR Ports 72 OSFP Cages - 8 Power Supplies
|
|
| |
|
Product Details
|

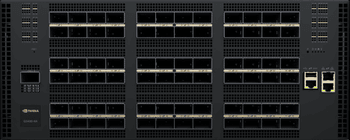

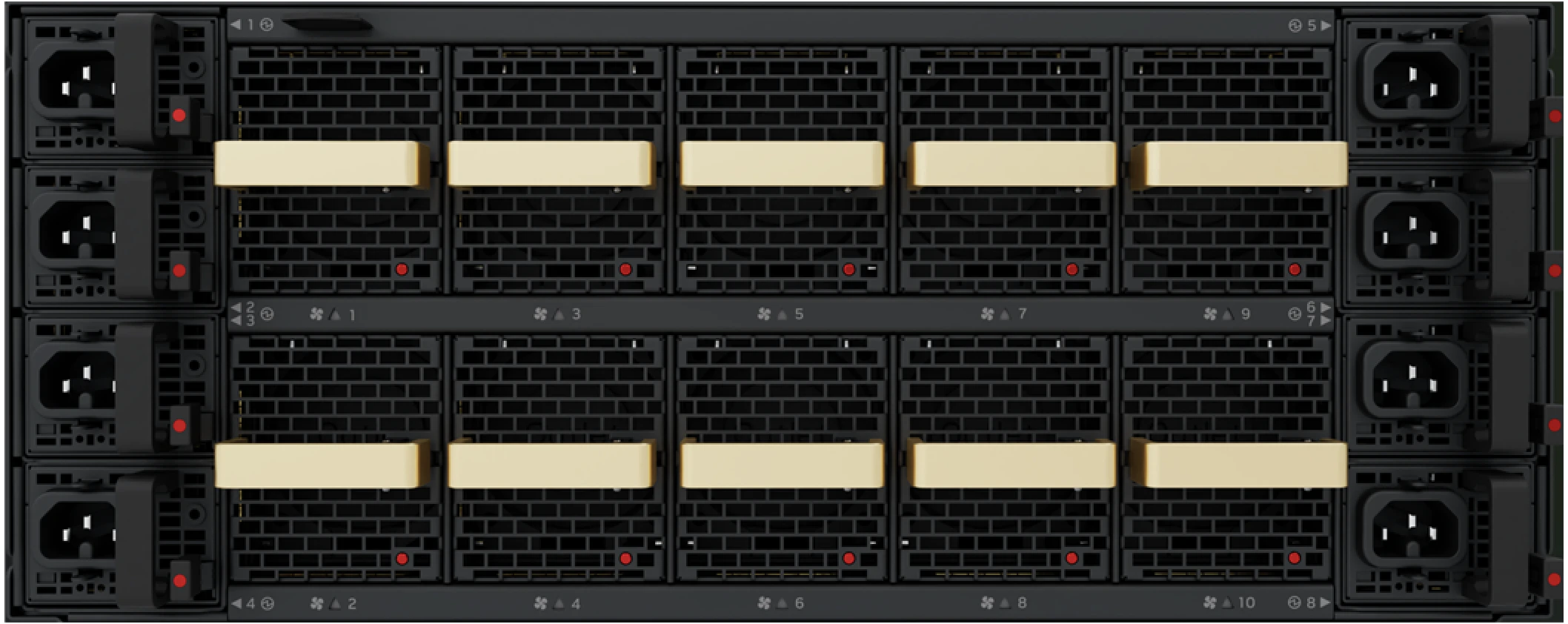

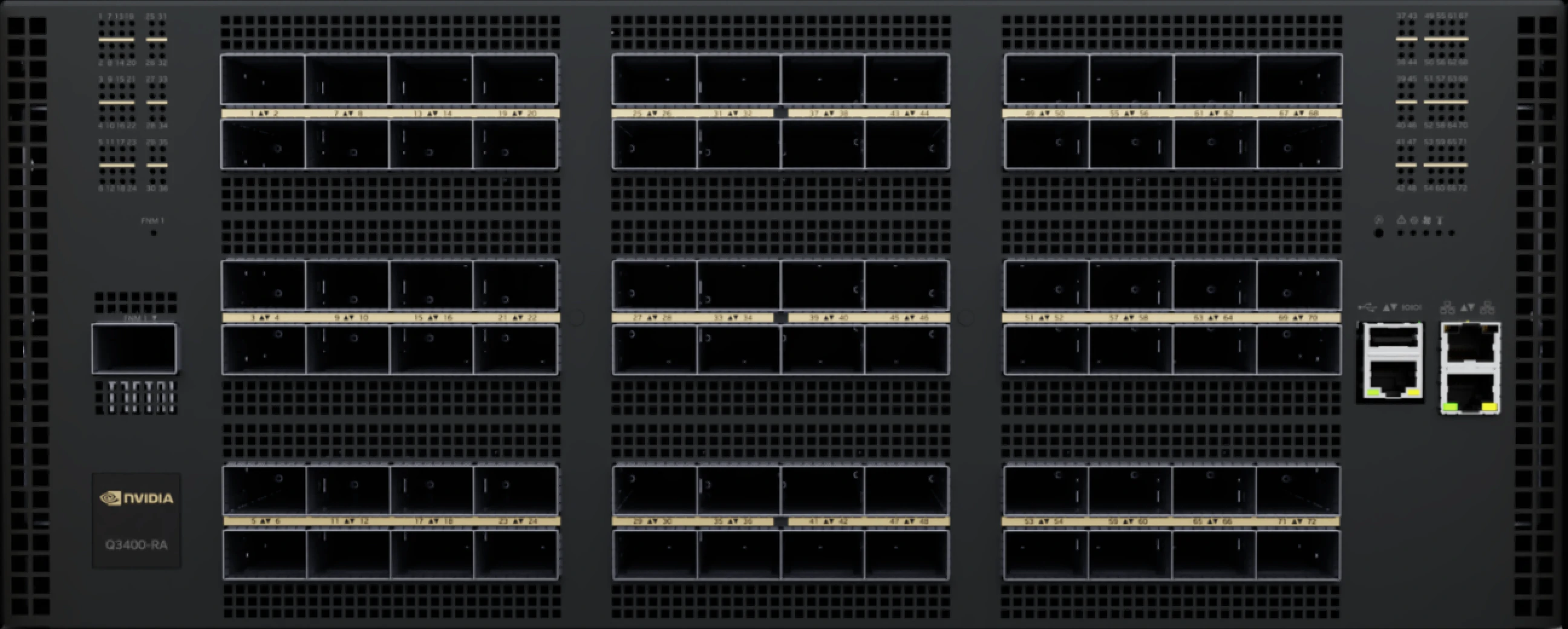

NVIDIA Quantum-3 Q3400-RA — Product Specifications (4U) The Q3400-RA is the 4U, air-cooled Quantum-3 XDR InfiniBand switch engineered for large-scale HPC and AI fabrics. It provides a high-radix, high-bandwidth fabric building block with industry-leading in-network acceleration features. Topline Specifications Ports 144 XDR ports (800 Gb/s), presented as 72 OSFP cages (each octal OSFP = 8 lanes). Aggregate Switching Capacity 115.2 Tb/s (bidirectional, line-rate switching). Form Factor 4U rack-mount chassis — standard 19" rack (177.8 mm H × 438 mm W × 850 mm D). PSUs & Fans 8 hot-swappable power supplies (load-sharing) and 10 hot-swappable fans (serviceable FRUs). Technical Details - Switch ASIC
- NVIDIA Quantum-3
- Port Speeds Supported
- 400 Gb/s and 800 Gb/s (XDR) per port (backwards compatibility with lower line rates where applicable).
- Switching
- 115.2 Tb/s aggregate switching capacity.
- Management Interfaces
- Dedicated fabric management (FNM) ports, front USB, console; full NVIDIA UFM integration for fleet management and telemetry.
- Redundancy / FRUs
- Hot-swappable PSUs and fans; field replaceable modules and FRU inventory tracking.
- Power (per system)
- Typical (passive cables / ATIS): ~2.9 kW; Max (active cables): up to ~7.0 kW — input 200–240VAC, 10A per PSU.
- Noise
- ~78.4 dBA at room temperature (data-center environment).
- Weight (approx.)
- ~60 kg (configured with 8 PSUs / full FRU complement).
- Operating Temperature
- 0 °C to 35 °C (reverse airflow scenarios noted in manual); storage: –40 °C to 70 °C.
- Humidity
- Operational: 10% to 85% non-condensing; storage: 10% to 90% non-condensing.
- Altitude
- Operable up to 3050 m.
- Regulatory / Compliance
- CB, cTUVus, CE, CU; EMC: CE, FCC, VCCI, ICES, RCM; RoHS compliant.
Features & Fabric Capabilities - High Radix: 144 XDR ports in a single 4U chassis enables high-density spines for two-level fat-tree fabrics.
- Scalable Topologies: Ideal as a spine in Fat-Tree, Dragonfly+, multi-dimensional Torus and custom AI factory topologies.
- SHARP & In-Network Acceleration: Supports SHARP collective offloads and hardware-accelerated reductions for distributed training.
- Adaptive Routing & Congestion Control: Hardware-assisted adaptive routing and advanced congestion mitigation for stable application performance.
- Interoperability: Designed to interoperate with ConnectX-8 adapters and BlueField DPUs and integrate with NVIDIA UFM and telemetry stacks.
- Router Option: Optional router capability to extend and bridge InfiniBand fabrics across sites or routing domains.
- Secure Firmware & Management: Secure boot, authenticated firmware updates, and role-based access control for multi-tenant deployments.
Environmental, Mechanical & FRU Summary - Chassis: 4U, standard depth rack (177.8 × 438 × 850 mm).
- FRUs: 8 × hot-swappable PSUs, 10 × hot-swappable fans, replaceable connector cages (OSFP), and console/management modules.
- Thermal: Air-cooled with front/rear airflow options depending on SKU and rack configuration.
- Monitoring: Integrated telemetry, thermal thresholds, and event logging for predictive maintenance and automated operations.
|
|
|
|
|
|
