Product Details
|
|

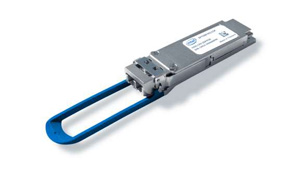

Intel® Silicon Photonics 100G LR4 QSFP28 Optical Transceiver
The Intel® Silicon Photonics 100G LR4 10km Reach QSFP28 Optical Transceiver is a small form-factor, high speed, and low power consumption product, targeted for use in optical interconnects for data communications applications. The high bandwidth module supports 100GbE optical links over single-mode fiber for up to 10 km.
Applications - Connectivity for large scale cloud and enterprise data centers
- Optical interfaces for Ethernet switch, router, and transport networking equipment
Highlights - Compliant with IEEE 100GBASE-LR4 optical interface standard for applications up to 10 km
- Electrical interface compliant with IEEE 802.3bm CAUI-4 standard
- Compact QSFP28 form factor for high faceplate density in networking equipment
- Compatibility with single-mode fiber connectors and cable infrastructures
- Operating temperature range of 0 to 70oC
- Compliant with SFF-8636 management interface and control through I2C
- Class 1 laser
|
|
|
|
|
|
