Mellanox Direct Attach Copper Splitter Cable Ethernet 400GbE to 2x200GbE QSFP-DD to 2xQSFP56, 1 meter, Part ID: MCP7H60-W001R30
|
|
|
SKU: MCP7H60-W001R30
Mellanox® DAC splitter cable, 400GbE, 400Gb/s to 2x200Gb/s, QSFP-DD to 2xQSFP56, 1m, 30AWG
More details... |
|
|
|
Mellanox Direct Attach Copper Splitter Cable Ethernet 400GbE to 2x200GbE QSFP-DD to 2xQSFP56, 1 meter, Part ID: MCP7H60-W001R30
|
|
| |
|
Product Details
|
|

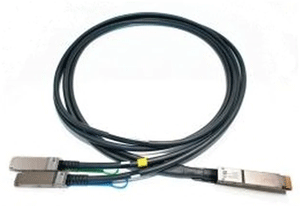

Mellanox DAC Splitter Cable 400GbE, 400Gb/s to 2x200Gb/s (QSFP-DD to 2xQSFP56)
Mellanox® MCP7H60-W0xxRyy DAC splitter cables are a high speed, cost-effective 400GbE QSFP-DD to 2x200GbE QSFP56 Ethernet connectivity solution, designed to meet the growing needs for higher bandwidth in data centers.
MCP7H60-W0xxRyy cables provide connectivity between systems with a QSFP-DD port on one side and up to two different QSFP56 ports on the other side (8x to two 4x). Each of the ports comprises an EEPROM providing product information, which can be read by the host system.
Mellanox’s unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.
Highlights - 400GbE to 2x200GbE data rate
- SFF-8636 compliant I2C management interface
- Operating case temperature 0-70°C
- BER (Bit Error Rate) better than 1E-15 with Mellanox end-to-end interconnect
- Hot pluggable
- RoHS compliant
- LSZH (Low Smoke Zero Halogen) jacket
- LF (Lead Free) HF (Halogen Free) PCB
Warranty Information Mellanox LinkX DAC cables include a 1-year limited hardware warranty, which covers parts repair or replacement.
