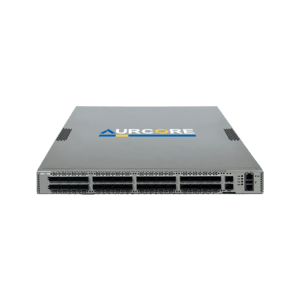

AES8001 | 32 x 400GE, 2 x 10G SFP+

SKU: AES8001

The AES8001 delivers high-throughput, low-latency switching purpose-built for spine-layer deployments in modern data center architectures. It supports line-rate Layer 2 and Layer 3 switching across 32 × 400GE QSFP-DD and 2 × 10G SFP+ ports. More details...

Product Details

AES8001 – Data Center Switch

25.6 Tbps High-Performance Spine Switch

Key Features

32 × 400GE QSFP-DD + 2 × 10GE SFP+ ports
Each QSFP-DD supports 400GE, 100GE, or breakout to 4 × 100GE / 4 × 25GE
25.6 Tbps switching capacity with 5600 Mpps forwarding rate
Optimized for spine-layer deployments with high-throughput connectivity
Supports Layer 2 and Layer 3 line-rate switching
Preloaded with ONIE for flexible NOS deployment (e.g., SONiC, commercial NOS)
Aurc-NOS with VXLAN, EVPN, MLAG, RoCE v2 support
Routing protocols: BGP, OSPF, IS-IS, MPLS
Hot-swappable redundant AC/DC power supplies
6+1 redundant hot-swappable fan modules
Front-to-back or back-to-front airflow options
Front-facing ports; rear-access power and cooling

Specifications

Model	AES8001
Interfaces	32 × 400GE QSFP-DD, 2 × 10GE SFP+
Management Ports	1 × MGMT, 1 × Console, 1 × USB 3.0
CPU	Intel D-1712TR
Chip Type	98CX8580-BWU4C000 (Falcon)
Switching Capacity	25.6 Tbps
Forwarding Rate	5600 Mpps
System Memory	16 GB
Cooling	7 hot-swappable fan modules
Power Supply	Dual redundant (1+1), hot-swappable
AC Input	100–240V (90–264V max), 50–60 Hz
DC Input	180–310V
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Dimensions	24.80" × 17.32" × 1.73" (1U)
Weight	15 kg (33.07 lbs)
Installation	Rack mount
