Intel® Solid-State Drive DC P3608 Series - 4000GB (4.0TB) - HHHL AIC Form Factor - Part ID: SSDPECME040T401

SKU: SSDPECME040T401
Manufacturer: Intel
Intel® Solid-State Drive DC P3608 Series - 4000GB (4.0TB) - HHHL AIC Form Factor More details...
Price: $8,595.00
Temporarily not available (Check with sales@colfaxdirect.com for availability)
Save to my Wish List Tell a friend

Share this product:

Intel® Solid-State Drive DC P3608 Series - 4000GB (4.0TB) - HHHL AIC Form Factor - Part ID: SSDPECME040T401
Intel® Solid-State Drive DC P3608 Series - 4000GB (4.0TB) - HHHL AIC Form Factor - Part ID: SSDPECME040T401

Product Details
Intel® Solid-State Drive DC P3608 Series

Extreme Performance – Moving Data Closer to the CPU
The Intel® SSD DC P3608 Series taps into the power of the NVMe™ interface to deliver new levels of PCIe® perfomance and ultra-low latency. When paired with multi-core Intel® Xeon® processors, the SSD’s unique NVMe dual controller architecture enables highly efficient scalability, evenly distributing I/O across the PCIe 3.0 x8 link to obtain real-world transfers of over 5GB/s bandwidth and up to 850,000 random read IOPS.

Extraordinary Capacity – Doubling the Max Capacity
Enabling capacities of 1.6, 3.2, and 4TB in a single PCIe 3.0 x8 low profile add-in card, the Intel SSD DC P3608 Series can provide twice the capacity in the same physical volume versus the Intel® SSD DC P3600 Series.

Exceptionally Easy – Upgrade Existing Systems Today!
The Intel SSD DC P3608 Series are ready to be deployed right out of the box. They come in a common, industry-standard form factor: PCIe 3.0 x8, half-height, half-length, low-profile add-in card. And they’re designed to work with industry standard NVMe software and drivers.

Specifications

Capacities
  • 1.6TB, 3.2TB, 4.0TB
Components
  • Intel® 20nm (HET High Endurance Technology) MLC NAND Flash Memory
Form Factors
  • AIC Form Factor (Add-in Card)
    • Half-height, Half-length, Low-profile
PCIe* Gen3 x8

Performance1,2
  • Seq R/W: Up to 5000/3000MB/s3

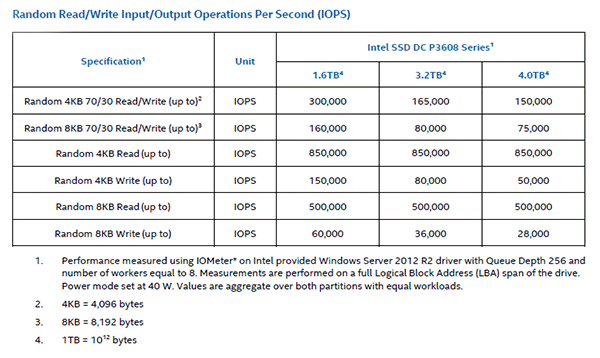

  • IOPS Random 4KB4 70/30 R/W: Up to 300K
  • IOPS Random 4KB4 R/W: Up to 850/150K
  • Seq Latency (typ) R/W: 20/20μs
Operating System Support
  • Windows* Server 2012 R2, 2012, 2008 R2 x64
  • Windows 7*, Windows 8*, Windows 8.1* (32bit/64bit)
  • RHEL* 6.5, 6.6, 6.7, 7.0, 7.1
  • UEFI 2.3.1
  • SLES11SP4*, SLES12
  • Citrix Xenserver 6.5, Cent OS 6.7
  • VMWare ESXI.5.5
Reliability
  • Uncorrectable Bit Error Rate (UBER): 1E-17
  • Silent bit error rate of 1E-25
  • Mean Time Before Failure (MTBF): 1 million hours
  • T10 DIF protection
Variable Sector Size:
  • 512, 520, 528, 4096, 4104, 4160, 4224 Bytes
Compliance
  • NVM Express* 1.0
  • PCI Express Base Specification Rev 3.0
  • Enterprise SSD Form Factor Version 1.0a
  • PCI Express Card Electro-Mechanical (CEM) Specification Rev 3.0
  • Microsoft Windows Hardware Certification
Certifications and Declarations
  • UL*, CE*, C-Tick*, BSMI*, KCC*, VCCI*
Power
  • 3.3V and 12V Supply Rail
  • Enhanced power-loss data protection
  • Active/Idle (TYP): 40W/11.5W
Endurance Rating
  • Up to 21.9 PBW (Petabytes Written)5 3 Drive Writes/day (JESD219 workload)
Temperature Specification
  • Operating: 0 to 55° C ambient with specified airflow
  • Non-Operating6: -55 to 95° C
  • Temperature monitoring (In-band through NVMe SMART and out of band)
  • Thermal throttling when approaching maximum operating temperature
Airflow
  • 55° C @400LFM (for 40W drive airflow towards IO bracket7)
Weight
  • 1.6TB - 227.5g
  • 3.2TB - 230.2g
  • 4.0TB - 230.6g
Shock
  • 50 G Trapezoidal, 170 in/s
Vibration
  • 3.13 GRMS (5-500Hz)
Altitude (Simulated)
  • Operating: -1,000 to 10,000 ft
  • Non-Operating: -1,000 to 40,000 ft
Product Ecological Compliance
  • RoHS

1. Performance values vary by capacity and form factor and are an aggregate value of the two volumes
2. Performance specifications apply to both compressible and incompressible data
3. MB/s = 1,000,000 bytes/second
4. 4KB = 4,096 bytes; 8KB = 8,192 bytes
5. 1PB = 1015 Bytes; per volume
6. Please contact your Intel representative for details on the non-operating temperature range
7. Airflow out of server through PCIe*Card Slot
